The Physics of Bouncing Balls and Elasticity

We can all look back on our childhood memories and find in some form or fashion a bouncing ball. Whether it be shooting hoops with friends or tossing a tennis ball against the wall while we were grounded, we’ve all played with these bouncing toys.

Learn more by continuing to read or watching the animated video below!

While to most people balls are rather unassuming objects, they actually serve as a rather interesting springboard into learning about many interesting physics phenomena. Acceleration, velocity, energy; you can learn it all when you start looking at the physics behind bouncing balls.

In any ball bounce, there are essentially 7 stages that the action can be broken into during its motion, before, during, and after impact is examined.

Let’s break down the physics of bouncing balls.



To begin we’ll look at the simplified 7 stages of a ball bounce ignoring any outside force other than gravity.

Stage 1: Falling

Stage one is the begging of every ball bounce where potential energy from the height of the ball is converted into kinetic energy through acceleration due to gravity. In a simplified case, the ball falls in line with the force of gravity, which always points directly downward. On earth, this acceleration due to gravity is 9.8 m/s(g= 9.8 m/s2). This means, in essence, that for every second for falling, the ball’s velocity will accelerate by 9.8 m/s.

stage 1 of bouncing ball falling vertically downward under influence of gravity

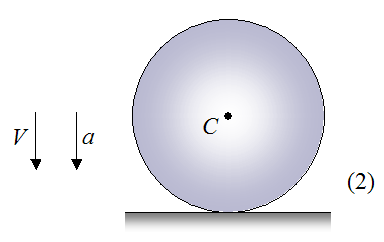

Stage 2: Initial Contact

The initial contact phase is just that; when the ball just barely makes contact with the ground surface. It will continue to fall under the influence of gravitational acceleration, but now, a normal force from the ground surface, opposing the force due to gravity, will act on the ball.

stage 2 of bouncing ball falling vertically downward under influence of gravity
Stage 3: Deceleration/negative acceleration

After initial impact, the ball rapidly decelerates or rather accelerates in the negative direction. The velocity of the ball still points downward as it deforms, but acceleration on the ball is beginning to point back upward as the forces from the reaction overcome gravity. This all means that the ball is pushing on the ground with a force greater than it’s own weight, so acceleration must point upward.

stage 3 of bouncing ball falling vertically downward under influence of gravity



Stage 4: Maximum deformation

Following the deceleration stage, the ball has reached maximum deformation. At this point, the velocity is zero and the acceleration vector points upward. This is the lowest point of the ball as well as its maximum deformed point. If we assume the ball to be totally elastic and ignore other energy losses like sound and heat, then the ball would bounce back up to its original drop height after this point.

stage 4 of bouncing ball falling vertically downward under influence of gravity

Stage 5: Initial Rebound

This stage begins the ball’s journey back to where it began. It’s velocity and acceleration vectors are pointing the the same direction meaning upward movement. The ball is less deformed than the maximum deformation stage and due to it’s elasticity, it is now pushing against the surface with a force greater than it’s own weight. This is what will cause the ball to bounce upward.

stage 5 of bouncing ball falling vertically downward under influence of gravity

Stage 6: Zero Contact Rebound

At zero contact rebound, the ball is no longer deformed and is barely touching the surface, essentially only at one point. Velocity is moving the ball upward, but at this point, acceleration switches to oppose the velocity vector. This is because there is no longer any force from the elasticity of the ball pushing on the surface giving it an upward acceleration. Acceleration due to gravity, which pulls downward, will now be the only force acting on the ball in a perfect system.

stage 6 of bouncing ball falling vertically downward under influence of gravity

Stage 7: Full Rebound

At full rebound, the ball has left the surface and it’s velocity vector still points upward, though shrinking steadily due to the acceleration or deceleration due to gravity. Following this step, the ball with reach a peak at a new step one, where it’s velocity vector is zero and the only force acting on it is gravity.

stage 7 of bouncing ball falling vertically downward under influence of gravity



Added Variables and Special Cases in Bouncing Ball Physics

The case of the bouncing ball above was simplified to remove any other forces like air resistance, imperfect elasticity, spin, friction, and the force from an initial throw among others. All this means that bouncing ball physics gets more complicated from here.

When balls have any spin, as they usually do when thrown, and when the surface they hit isn’t frictionless, the balls spin reverses from before to after impact. This is due to the force of friction. Assuming 2-dimensions for theories sake, you can observe the reaction below.



ball with spin and velocity reversal after the bounce

As the ball impacts with a spin in one direction, the friction force F counteracts the balls spin. Or rather, the friction force is always opposite the direction of the slip velocity between the spinning ball and the surface. Since the friction force is opposite of the balls spin, it torques the ball in the other direction. It also causes the path of the ball’s bounce to skew in the direction of the friction force. In simplified terms, when a ball spins in one direction, when it hits a wall, the friction between the ball and the wall overcomes the spin so much that it reverses its spin direction.

This spin reversal doesn’t happen if the ball and the wall’s coefficient of friction aren’t high enough. The coefficient of friction varies by material and surface and is essentially a number that indicates how grippy a surface or material is.



In real life non-ideal scenarios, bouncing balls lose energy and eventually come to a stop. This is all due to the forces we ignored in the first example. When a ball hits a wall or surface, it makes a noise, which is a loss of energy from the ball’s bounce. It also will generate some amount of heat, another loss of energy. Friction from the wall will cause energy loss as well as air resistance while the ball travels. In essence, the ball will never have as much potential or kinetic energy as it had from right after it was thrown or right before it strikes a surface, depending on the scenario.
